———间隙调整型>>LM□AJ (亚洲标准)———

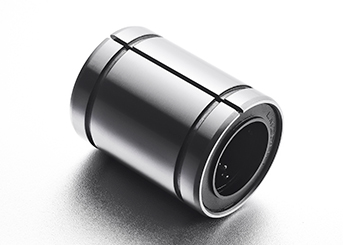

实物图

联系方式

电话:(86) 0574-63780228

邮箱:yt@nbbearing.com

地址:中国浙江省慈溪市龙山镇西门外工业区


3D PDF 型号对照表

型号球例数重量 (g)主要尺寸径向 跳动
(MAX.)
基本额定载荷
内径
dr
内径
公差
外径
D
外径
公差
长度
L
长度
公差
外止动槽
B
外止动槽
公差
外止动槽
D1
WhC(kgf)Co(kgf)
LM6UU-AJ47.660 -0.009120 -0.011190 -0.2013.50 -0.2011.51.110.0122127
LM8SUU-AJ41080 -0.009150 -0.011170 -0.2011.50 -0.2014.31.110.0121823
LM8UU-AJ414.780 -0.009150 -0.011240 -0.2017.50 -0.2014.31.110.0122741
LM10UU-AJ429100 -0.009190 -0.013290 -0.20220 -0.20181.310.0123856
LM12UU-AJ431120 -0.009210 -0.013300 -0.20230 -0.20201.31.50.0124261
LM13UU-AJ442130 -0.009230 -0.013320 -0.20230 -0.20221.31.50.0125279
LM16UU-AJ568160 -0.009280 -0.013370 -0.2026.50 -0.20271.61.50.01279120
LM20UU-AJ585200 -0.010320 -0.016420 -0.2030.50 -0.2030.51.61.50.01588140
LM25UU-AJ6216250 -0.010400 -0.016590 -0.30410 -0.30381.8520.015100160
LM30UU-AJ6245300 -0.010450 -0.016640 -0.3044.50 -0.30431.852.50.015160220
LM35UU-AJ6384350 -0.012520 -0.019700 -0.3049.50 -0.30492.12.50.020170320
LM40UU-AJ6579400 -0.012600 -0.019800 -0.3060.50 -0.30572.130.020220410
LM50UU-AJ61560500 -0.012800 -0.0191000 -0.30740 -0.3076.52.630.020390810
LM60UU-AJ61820600 -0.015900 -0.0221100 -0.30850 -0.3086.53.1530.0254801020
LM80UU-AJ64420800-0.0151200-0.0221400-0.40105.50-0.401164.1530.0257351600
LM100UU-AJ685401000-0.0201500-0.025750-0.40125.50-0.401454.1530.0317351600
